Description

"This snippet allows editing `Gradient` resource in-app.\r\n\r\n> [!NOTE]\r\n> Only the simplest features are recreated from the editor version. Setting the color space or the interpolation mode is left to the coder\/integrator discretion.\r\n\r\nIt requires to attach the script below to the root of the following node tree.\r\n\r\nThe node types are:\r\n- `MarginContainer` for the root node _ColorGradientEditor_\r\n- `TextureRect` for the node _GradientViewer_\r\n- `ColorRect` for the node _Cues_\r\n\r\nThe script only exposes one exported variable : **gradient** of type `Gradient`, the resource to edit.\r\n\r\nThis control node almost work as the Editor one :\r\n- grab a handle with the left mouse button to move a control point along the texture. \r\n- left-click outside an handle to create a new control point.\r\n- middle-click on an handle to remove a control point.\r\n- click on the colored square on the right to invoke a color picker in order to modify the currently selected control point.\r\n\r\n"

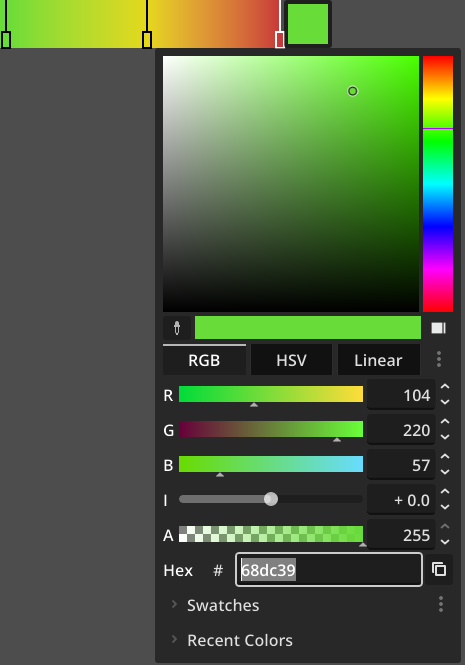

Screenshots

Main code

class_name ColorGradientEditor
extends Control

# Handle width in pixels
const HANDLE_WIDTH : int = 8

## Edited Gradient resource
@export var gradient : Gradient :
	set(value):
		if gradient != null:
			gradient.changed.disconnect(_update_viewer)
		gradient = value
		gradient.changed.connect(_update_viewer)
		if gradient_texture:
			gradient_texture.gradient = gradient

@onready var gradient_texture : GradientTexture1D
@onready var gradient_viewer : TextureRect = $%GradientViewer as TextureRect
@onready var color_picker : ColorPickerButton = $%ColorPickerButton as ColorPickerButton
@onready var cues : ColorRect = $%Cues as ColorRect

@onready var handles : Array[Rect2] = []

@onready var dragged : int = -1
@onready var selected : int = -1

func _ready() -> void:
	gradient_texture = GradientTexture1D.new()
	gradient_texture.gradient = gradient
	gradient_texture.changed.connect(gradient_viewer.queue_redraw)
	gradient_texture.changed.connect(cues.queue_redraw)
	gradient_viewer.texture = gradient_texture
	gradient_viewer.resized.connect(_resize_color_picker)
	cues.draw.connect(_draw_cues)
	cues.gui_input.connect(_cues_input)
	color_picker.color_changed.connect(_change_selected_color)

## Update color for the selected control point
func _change_selected_color(color : Color) -> void:
	if selected >= 0:
		gradient.set_color(selected, color)

## Input event management on handles
func _cues_input(event: InputEvent) -> void:
	var mb : InputEventMouseButton = event as InputEventMouseButton
	if mb:
		if mb.button_index == MOUSE_BUTTON_LEFT:
			if mb.pressed:
				# Is there an handle at mouse cursor ?
				dragged = _get_point_at(mb.position)
				if dragged < 0:
					var offset : float = mb.position.x / cues.size.x
					var color : Color = gradient.sample(offset)
					gradient.add_point(offset, color)
					color_picker.color = color
					cues.queue_redraw()
					await cues.draw
					selected = _get_point_at(mb.position)
				else:
					color_picker.color = gradient.get_color(dragged)
					selected = dragged
			else:
				dragged = -1
			accept_event(); return
		if mb.button_index == MOUSE_BUTTON_MIDDLE and mb.pressed and gradient.get_point_count() > 1:
			var sel : int = _get_point_at(mb.position)
			if sel >= 0:
				gradient.remove_point(sel)
			accept_event(); return

	if dragged >= 0:
		var mm : InputEventMouseMotion = event as InputEventMouseMotion
		if not mm: return
		var ratio : float = clampf(mm.position.x / cues.size.x, 0., 1.)
		var previous_ratio : float = gradient.get_offset(dragged)

		var new_idx : int = _get_last_handle(ratio) if previous_ratio <= ratio else _get_first_handle(ratio)
		if new_idx != dragged:
			var sw_col : Color = gradient.get_color(new_idx)
			var sw_ratio : float = gradient.get_offset(new_idx)
			var cur_col : Color = gradient.get_color(dragged)
			gradient.set_offset(dragged, sw_ratio)
			gradient.set_color(new_idx, cur_col)
			gradient.set_color(dragged, sw_col)
			dragged = new_idx
			selected = new_idx
		else:
			gradient.set_offset(dragged, ratio)
		accept_event()

func _get_last_handle(end : float) -> int:
	var current : int = dragged
	var count : int = gradient.get_point_count()
	while current < count and gradient.get_offset(current) <= end:
		current += 1
	return current - 1 if current != dragged else dragged

func _get_first_handle(start : float) -> int:
	var current : int = dragged
	while current >= 0 and gradient.get_offset(current) >= start:
		current -= 1
	return current + 1

## Return the handle id (and thus, the point id) at the local mouse position
func _get_point_at(pos : Vector2) -> int:
	for i : int in range(handles.size()):
		if handles[i].has_point(pos):
			return i
	return -1

## Resize the color picker according to the height of the neighbor gradient viewer
func _resize_color_picker() -> void:
	var s : float = gradient_viewer.size.y
	color_picker.custom_minimum_size = Vector2(s, s)
	reset_size()

## Update the gradient viewer TextureRect
func _update_viewer() -> void:
	if not gradient_viewer: return

	gradient_viewer.queue_redraw()
	cues.queue_redraw()

## Redraw the handles/cues
func _draw_cues() -> void:
	handles.clear()
	var sz : Vector2 = cues.size

	cues.draw_rect(Rect2(Vector2.ZERO, sz), Color.TRANSPARENT)

	if not gradient: return

	var cue_box_height : float = sz.y / 3.
	var count : int = gradient.get_point_count()
	for i : int in range(count):
		var offset : float = gradient.get_offset(i) * sz.x
		var color : Color = gradient.get_color(i)

		var cue_border_color : Color = Color.WHITE if color.ok_hsl_l < 0.5 else Color.BLACK
		cues.draw_line(Vector2(offset, 0), Vector2(offset, cue_box_height * 2.), cue_border_color, 2)

		# Create the handles while we're at it.
		var start_handle : float = max(0, offset - (HANDLE_WIDTH / 2.))
		var end_handle : float = start_handle + HANDLE_WIDTH
		if end_handle > sz.y: # Unless we use a VERY small area (< 8 pixels large), handle shall be drawn propertly
			start_handle = end_handle - HANDLE_WIDTH
		var handle_rect : Rect2 = Rect2(Vector2(start_handle, cue_box_height * 2.), Vector2(HANDLE_WIDTH, cue_box_height))
		handles.append(handle_rect)

		cues.draw_rect(handle_rect, color)
		cues.draw_rect(handle_rect, cue_border_color, false, 2)
