Description

"Here is a very simple 2D radial menu. It's usage is very basic : Attach this script to a `Node2D` and add as many textures as actions you want to display.\r\nThe menu can be opened ('unfolded') and closed ('folded'). Actions can be selected by indicating a position (the cursor, or something else, it's up to you).\r\n\r\n> [!NOTE]\r\n> For better result, try to use texture of the same size as the sprites will be evenly distributed on the circle.\r\n\r\n> [!CAUTION]\r\n> \"Actions\" will be identified by the position of their respective textures in the array.\r\n\r\n## Signal\r\n\r\n- **selected** : This signal is emitted when the menu is folded\/closed and an action as been selected. The action selection is reseted.\r\n\r\n## Parameters\r\n\r\n- **actions** : Array of textures. It defines the actions. Actions are identified by their position in this array.\r\n- **Topology**\r\n\t- **icons_scale** : Icons scaling factor.\r\n\t- **radius** : Radius of the menu.\r\n\t- **thickness** : Thickness of the ring.\r\n\t- **angle_offset** : Offset the menu by an angle in radian.\r\n\t- **background_color** : Background color if the ring when an action is selected.\r\n\t- **selection_color** : Color of the ring portion corresponding to the selected action.\r\n\t- **always_visible** : Always display the background ring even when no selection.\r\n- **Unfold**\r\n\t- **unfold_time** : Time (in seconds) taken by an action to reach its final position when the menu opens.\r\n\t- **unfold_delay** : Delay of opening (in seconds) between each successive actions.\r\n\t- **unfold_ease_type** : Type of easing used for menu opening.\r\n\t- **unfold_transition_type** : Type of transition used for menu opening.\r\n- **Fold**\r\n\t- **fold_time** : Time (in seconds) taken by an action to reach the menu center when the menu closes.\r\n\t- **fold_delay** : Delay of closing (in seconds) between each successive actions.\r\n\t- **fold_ease_type** : Type of easing used for menu closing.\r\n\t- **fold_transition_type** : Type of transition used for menu closing.\r\n- **Selection** : When an action if \"focused\" (or selected), its icon shakes.\r\n\t- **shake_amplitude** : Shaking amplitude (in radians)\r\n\t- **shake_speed** : Shaking period (in seconds).\r\n\r\n\r\n\r\n## Methods\r\n\r\n- **unfold()** : Opens the menu.\r\n- **fold()** : Closes the menu. If an action has been selected, the signal **selected** is emitted.\r\n- **set_active(pos : Vector2)** : Select the action at the specified position. The corresponding icon will shake."

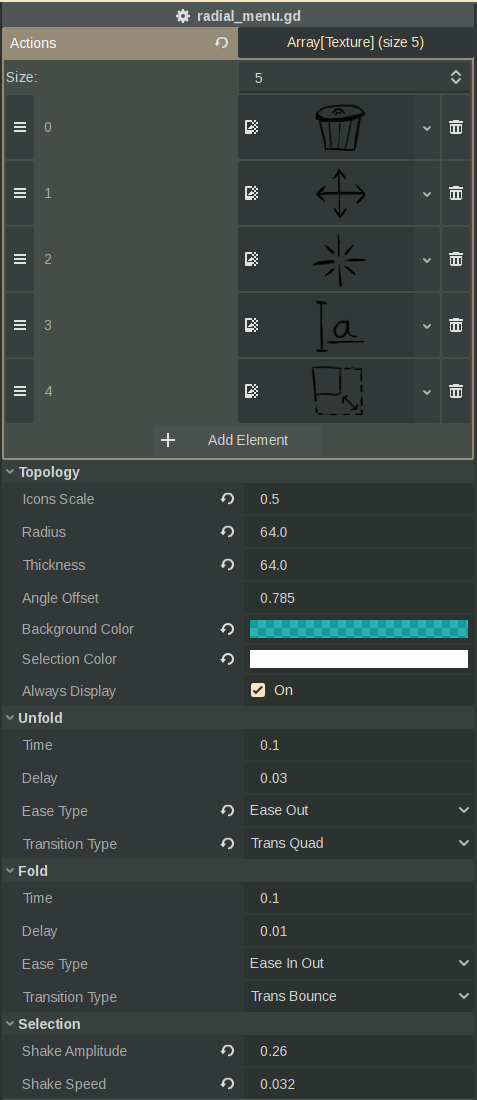

Screenshots

Main code

extends Node2D

signal selected(id : int)

@export var actions : Array[Texture] = []

@export_subgroup("Topology")
@export var icons_scale : float = 1.
@export var radius : float = 128.
@export var thickness : float = 32.
@export var angle_offset : float = PI/4.
@export var background_color : Color = Color(1., 1., 1., 0.5)
@export var selection_color : Color = Color.WHITE
@export var always_display : bool = true

@export_subgroup("Unfold", "unfold_")
@export var unfold_time : float = 0.1
@export var unfold_delay : float = 0.03
@export var unfold_ease_type : Tween.EaseType = Tween.EASE_IN_OUT
@export var unfold_transition_type : Tween.TransitionType = Tween.TRANS_BOUNCE

@export_subgroup("Fold", "fold_")
@export var fold_time : float = 0.1
@export var fold_delay : float = 0.01
@export var fold_ease_type : Tween.EaseType = Tween.EASE_IN_OUT
@export var fold_transition_type : Tween.TransitionType = Tween.TRANS_BOUNCE

@export_subgroup("Selection")
@export var shake_amplitude : float = PI / 4.
@export var shake_speed : float = 0.1

@onready var icons : Array[Sprite2D] = []
@onready var active_icon : int = -1
@onready var time : float = 0.
@onready var next_shake : float

func _ready() -> void:
	for i in range(actions.size()):
		var texture : Texture = actions[i]
		var s : Sprite2D = Sprite2D.new()
		s.name = "action_%d" % (i)
		s.scale = Vector2.ZERO
		s.position = Vector2.ZERO
		s.texture = texture
		icons.append(s)
		add_child(s)
	visible = false

func set_active(pos : Vector2) -> void:
	if not visible:
		return
	var found : bool = false
	for i in range(icons.size()):
		var s : Sprite2D = icons[i]
		var r : Rect2 = s.get_rect()
		var c : Vector2 = r.get_center()
		var ns : Vector2 = r.size * s.scale
		var np : Vector2 = c - (ns / 2.)
		r.position = np
		r.size = ns
		r.position += position + s.position
		if r.has_point(pos):
			if active_icon != -1 and active_icon != i:
				icons[active_icon].rotation = 0.
			if active_icon != i:
				next_shake = time - (shake_speed * 2.)
				queue_redraw()
				active_icon = i
			found = true
			break
	if not (found or active_icon == -1):
		icons[active_icon].rotation = 0.
		active_icon = -1
		queue_redraw()

func _draw() -> void:
	if always_display or active_icon != -1:
		draw_circle(Vector2.ZERO, radius, background_color, false, thickness, true)
	if active_icon != -1:
		var angle_step : float = (2. * PI) / actions.size()
		var start_angle : float = angle_offset + (active_icon * angle_step) - angle_step / 2.
		var end_angle : float =  start_angle + angle_step
		draw_arc(Vector2.ZERO, radius, start_angle, end_angle, 16, selection_color, thickness, true)

func _process(delta : float) -> void:
	time += delta
	if visible and active_icon != -1 and time > next_shake:
		var s : Sprite2D = icons[active_icon]
		while next_shake < time:
			next_shake += shake_speed
		var rot : float = randf() * shake_amplitude * (-1. if sign(s.rotation) > 0. else 1.)
		s.rotation = rot

func unfold() -> void:
	if not (icons.is_empty() or visible):
		visible = true
		var final_scale : Vector2 = Vector2.ONE * icons_scale
		var angle_step : float = (2. * PI) / actions.size()
		var tween : Tween = get_tree().create_tween()
		for i in range(icons.size()):
			var s_delay : float = i * unfold_delay
			var angle : float = angle_offset + i * angle_step
			var final_position : Vector2 = Vector2(cos(angle), sin(angle)) * radius
			var sprite : Sprite2D = icons[i]
			tween.parallel().tween_property(sprite, "position", final_position, unfold_time).set_delay(s_delay).set_ease(unfold_ease_type).set_trans(unfold_transition_type)
			tween.parallel().tween_property(sprite, "scale", final_scale, unfold_time).set_delay(s_delay).set_ease(unfold_ease_type).set_trans(unfold_transition_type)
		tween.tween_callback(queue_redraw)

func fold() -> void:
	var selected_icon : int = active_icon
	active_icon = -1
	queue_redraw()
	if (not icons.is_empty()) and visible:
		var tween : Tween = get_tree().create_tween().parallel()
		var s_delay : float = 0.
		for s in icons:
			tween.parallel().tween_property(s, "position", Vector2.ZERO, fold_time).set_delay(s_delay).set_ease(fold_ease_type).set_trans(fold_transition_type)
			tween.parallel().tween_property(s, "scale", Vector2.ZERO, fold_time).set_delay(s_delay).set_ease(fold_ease_type).set_trans(fold_transition_type)
			s_delay += fold_delay
		tween.tween_callback(set_visible.bind(false))
		if selected_icon != -1:
			tween.tween_callback(selected.emit.bind(selected_icon))
